1. Hashrate vs. Inlet Coolant Temperature
2. Power Efficiency vs. Inlet Coolant Temperature
(1-1) The hashrate value, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power efficiency on wall fluctuate by ±5%.
| Purchasing Guidelines
| Product Glance | Value | ||

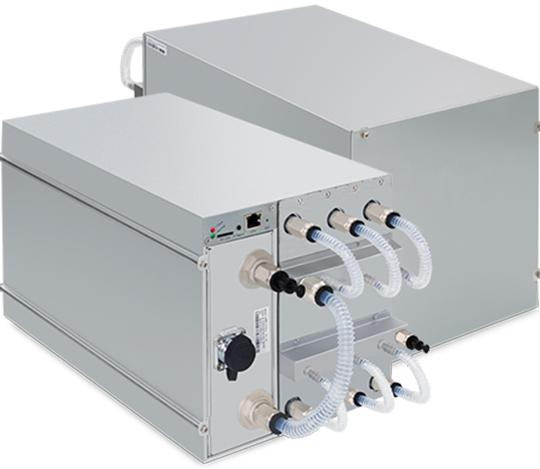

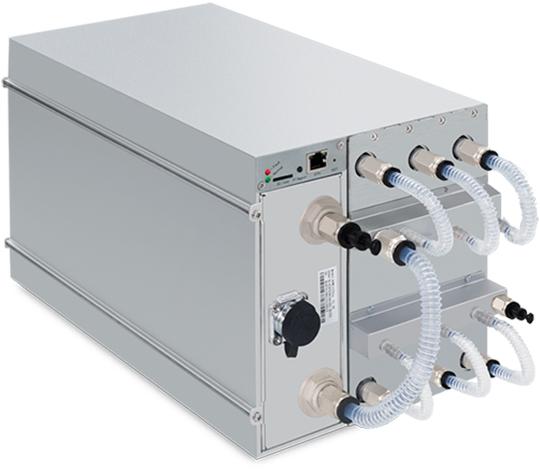

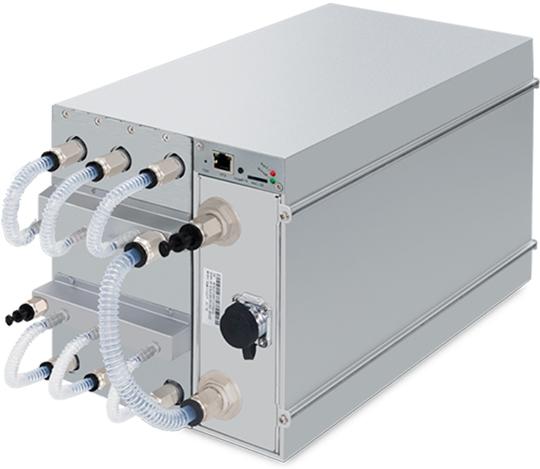

| Model | S19e XP Hyd. | ||
| Crypto algorithm/coins | SHA256 | BTC/BCH/BSV | ||
Typical Hashrate, TH/s(2-1) |
| ||
| Power on wall @35°C(2-2), Watt(2-1) |
| ||
| Power efficiency on wall @35°C, J/TH(2-1) | 22 | ||
| Detailed Characteristics | Value |
| Power supply | |
| Phase | 3 |
| Input voltage, Volt(3-1) | 380~415 |
| Input frequency range, Hz | 50~60 |
| Input max current, Amp | 12 |
| Hardware configuration | |
| Network connection mode | RJ45 Ethernet 10/100M |
| Server Size (length*width*height, w/o package), mm | 410*170*209 |
| Server Size (length*width*height, with package), mm | 570*316*430 |
| Net weight, kg | 12.8 |
| Gross weight, kg | 14.1 |
| Environment requirements | |
| Inlet coolant temperature, °C | 20~50 |
| Coolant flow, L/min | 8.0~10.0 |
| Coolant pressure, bar | ≤3.5 |
| Working Coolant(3-2) | Antifreeze/ Pure water/Deionized water |
| Coolant pH Value | Antifreeze: 7.0~9.0 Pure water: 6.5~7.5 Deionized water：8.5~9.5 |
| Diameter of Coolant pipe connector, mm | OD10 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
